Check Engine Light On and AC Not Working Mercedes-Benz CLS Case Study
Check Engine Light On and AC not Working it’s a frustrating combo that can leave any driver puzzled. You expect a dashboard warning to point to an engine issue, but then your air conditioning fails too? That’s exactly what happened with this Mercedes-Benz CLS W257 equipped with the M264 engine.
In this case study, we’ll uncover how a simple fault caused by a broken wire on the outside temperature sensor triggered both the Check Engine Light On and AC not Working issues. If you’re dealing with a similar problem, this article will walk you through the diagnostics, repair process, and why such a small sensor can have such a big impact.

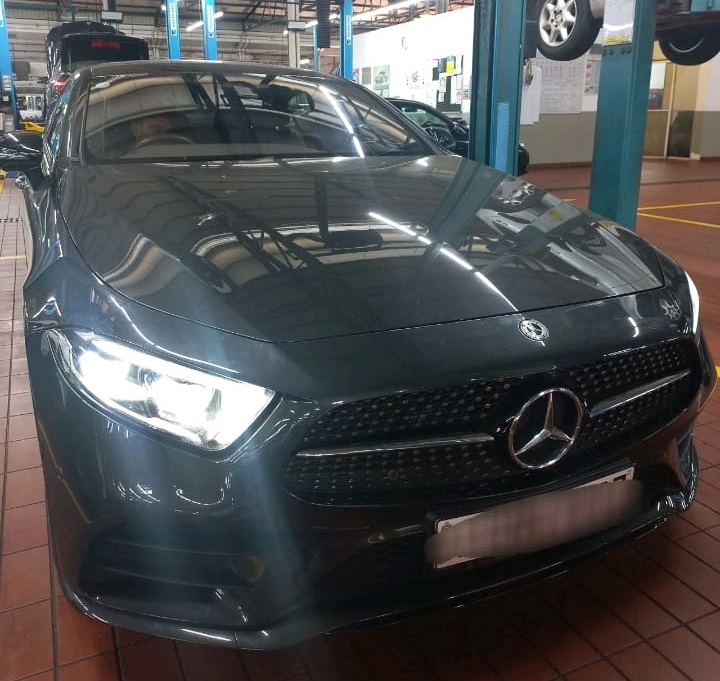

Vehicle Overview
Model: Mercedes-Benz CLS W257
Engine: M264 engine
Customer Complaint: Check Engine Light On and AC not Working

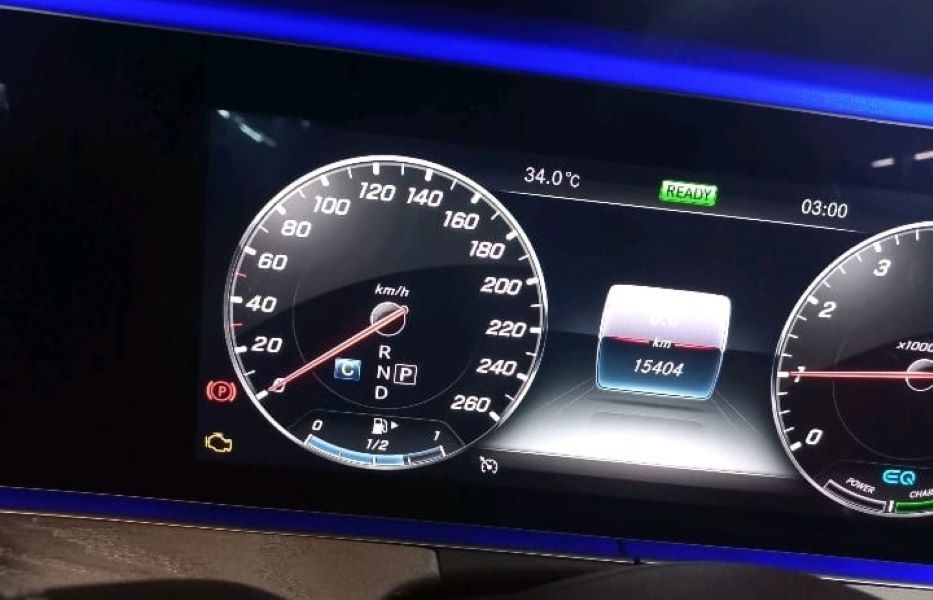

The vehicle was brought into the workshop with two main concerns: the engine warning light was illuminated, and the air conditioning system was not blowing cold air even though all other systems seemed to be functioning normally.
Diagnosis Process

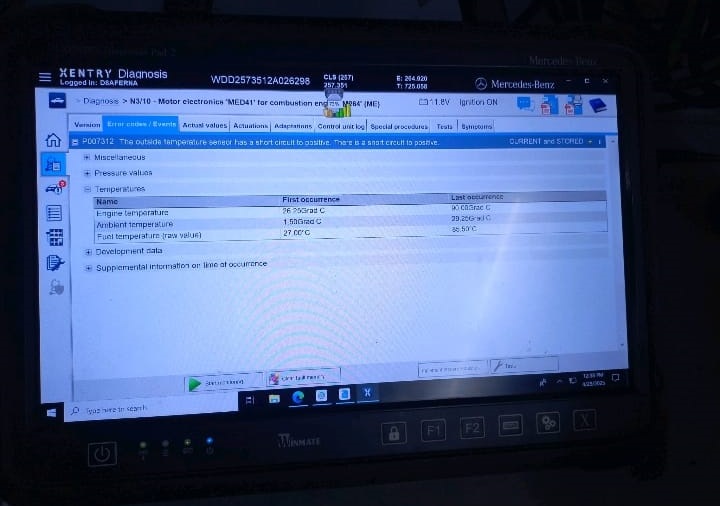

To investigate the issue, a quick test was performed using the Mercedes-Benz diagnostic system. The system revealed a stored and current fault:
- DTC: P007312 – The outside temperature sensor has a short circuit to positive.
This fault indicated a problem with the ambient air temperature sensor, which is responsible for measuring external temperature and feeding that data to both the engine control module and the HVAC (air conditioning) system.
Visual Inspection & Repair

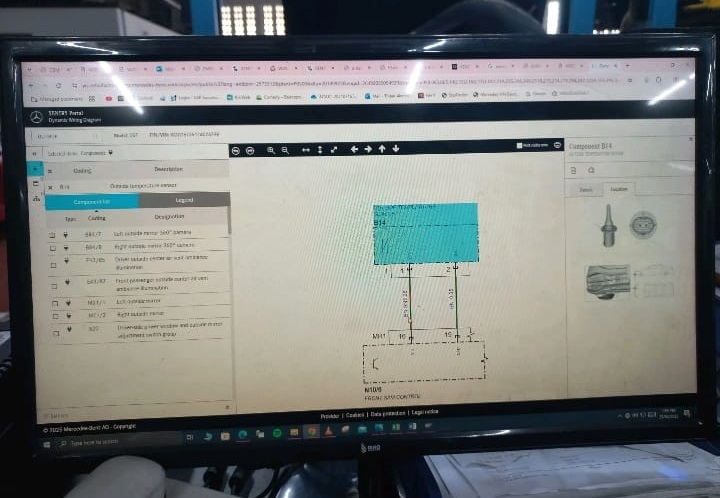

1. Wiring Diagram and Sensor Location Check
The technician referenced the vehicle’s wiring diagram to locate the ambient temperature sensor and examine its connection layout.

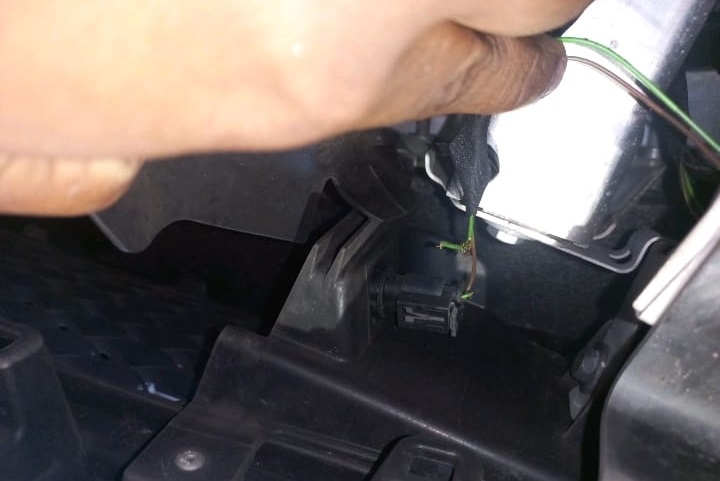

2. Physical Examination
Upon inspecting the sensor beneath the front bumper area, one of the wires connected to the sensor was found broken likely due to environmental wear or external damage such as debris or rodent activity.
3. Repair Solution
- The broken wire was properly repaired using heat-shrink tubing and soldering to ensure a secure and durable connection.

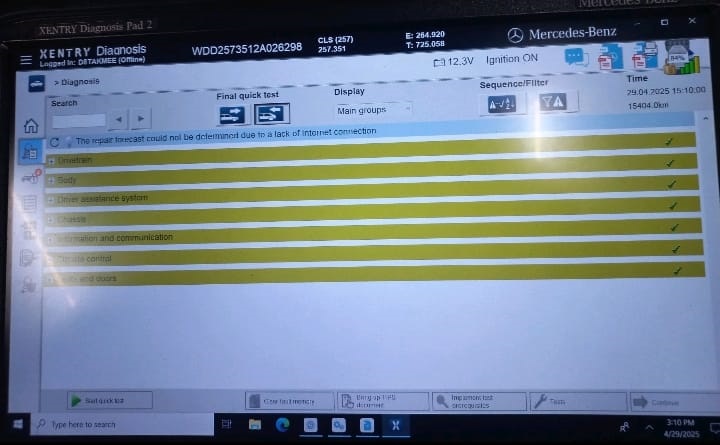

- After the repair, the fault code was cleared using diagnostic software.
- The air conditioning system resumed normal operation, and the check engine light turned off.
Why a Temperature Sensor Affects the AC System
You might wonder how a broken outside temperature sensor can result in the Check Engine Light On and AC not Working issue. Here’s why:
- The engine control unit (ECU) uses temperature data to adjust engine parameters.
- The HVAC control unit relies on accurate ambient temperature readings to determine when to engage the AC compressor.
- If the sensor provides faulty signals or none at all the system may prevent compressor activation as a safety precaution.
Thus, a broken wire to this small sensor was enough to shut down your cold air supply entirely and raise a fault in the ECU.
Lessons for Car Owners and Technicians
If you experience Check Engine Light On and AC not Working, don’t rush to replace expensive parts like the compressor or AC control unit. Always begin with:
- A full diagnostic scan
- Review of wiring diagrams
- Thorough inspection of sensor wiring
This approach can save both time and money, and in cases like this, it might just be a simple wire repair.
Can AC Trigger a Check Engine Light?
Yes. In modern vehicles like the CLS W257, the air conditioning system shares data with the engine control unit (ECU). If a sensor within the AC system such as the ambient temperature sensor fails or provides faulty readings, the ECU may detect it as a fault, triggering the check engine light.
That’s exactly what happened in this case, where a broken wire on the outside temperature sensor caused both the Check Engine Light On and AC not Working issue.
Can My AC Affect My Engine?
Yes, indirectly. The AC system adds load to the engine when the compressor is engaged. If the AC compressor is faulty or seizing up, it can put additional strain on the engine, resulting in poor performance or stalling. In severe cases, it can even cause engine warning lights or trigger limp mode.
Can Low Engine Coolant Cause AC to Not Work?
Yes, low engine coolant can cause the AC system to shut down as a protective measure. If the engine is overheating or the coolant is too low, the ECU may disable the AC compressor to reduce thermal load on the engine.
However, in this case, the cause was electrical not coolant-related so checking both electrical and cooling systems is important when facing Check Engine Light On and AC not Working.
Can a Bad AC Compressor Cause Engine Problems?
Definitely. A failing or seized AC compressor can increase resistance on the serpentine belt, potentially leading to belt slippage, engine overheating, or even stalling. If the AC compressor clutch is damaged, it may also affect power delivery to other belt-driven accessories, which can affect engine performance and trigger fault codes.
Lessons for Car Owners and Technicians
If you experience Check Engine Light On and AC not Working, don’t rush to replace expensive parts like the compressor or AC control unit. Always begin with:
- A full diagnostic scan
- Review of wiring diagrams
- Thorough inspection of sensor wiring
This approach can save both time and money and sometimes, as in this case, a broken wire is all it takes to knock out two systems.
Conclusion
Modern cars like the Mercedes-Benz CLS W257 are highly sensitive to sensor inputs. A damaged outside temperature sensor wire can disable critical comfort and performance systems.
Next time you face the Check Engine Light On and AC not Working, remember this case study sometimes the smallest components can cause the biggest headaches.
