Mercedes Electrical Problems guide
Electrical problems in modern Mercedes-Benz vehicles can feel like chasing invisible wires one warning light today, a non-starting engine tomorrow. Under the surface, your car is powered by dozens of control modules communicating over a high-speed CAN bus network and smaller LIN sub-buses.
When a fault occurs in the SAM (Signal Acquisition Module), ECU (Engine Control Unit), or wiring harness, it can cripple several systems at once.

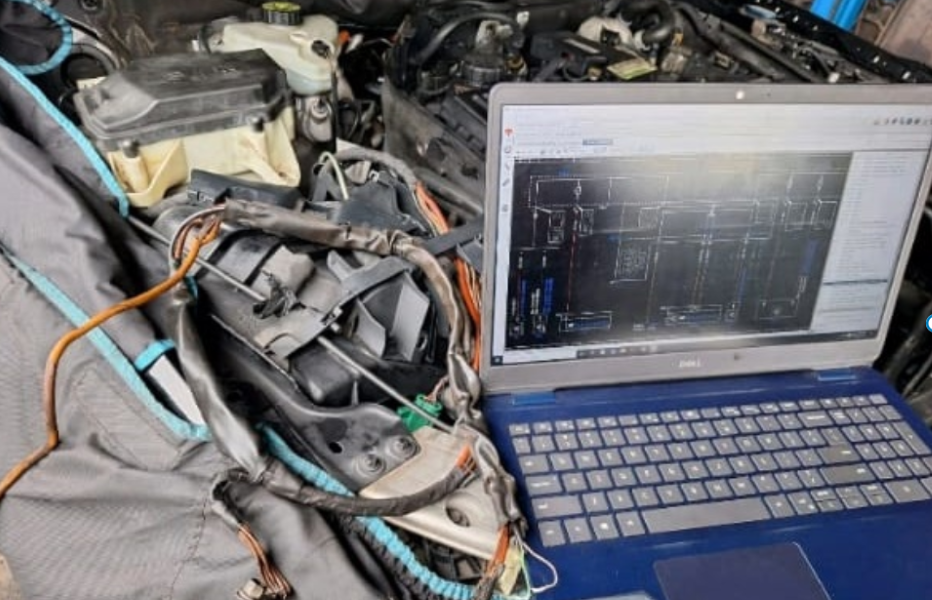

This guide explains how to diagnose and fix Mercedes electrical problems step by step, using real workshop experience and OEM-level diagnostic logic. Whether you’re facing a random warning light, a no-communication fault, or a dead dashboard, this hub will help you find and fix the real cause.
Common Mercedes Electrical Problems
Electrical faults can manifest in many forms, from subtle flickering lights to complete system failure. Here are the most frequent culprits:
- – SAM Module Failure: Often due to water ingress or internal corrosion, leading to lighting, locking, and communication issues.
- – ECU Power Loss: A faulty relay or fuse may cut voltage supply to the engine or transmission control units.
- – CAN Bus Interference: Short circuits or open lines disrupt data communication between modules.
- – Poor Ground Connection: Corroded or loose ground points cause voltage drops and unpredictable warnings.
- – BMS (Battery Management System) Faults: In 48-V or hybrid models, a weak auxiliary battery can interrupt power flow.
- – Wiring Harness Damage: Rodents, humidity, or previous repairs may cause hidden breaks or shorts.
Ignoring these symptoms can trigger limp mode, no-start conditions, or multiple cascading errors across the network.
Symptom, Cause, Fix Overview
| Symptom | Likely Cause | Fix |
|---|---|---|
| Engine won’t start | SAM or ECU not powered | Check fuses, relays, ground continuity |
| Random warning lights | CAN network interference | Inspect harness, verify termination resistance |
| Headlights or wipers inoperative | SAM internal failure | Replace and code new SAM unit |
| Transmission or ESP errors | LIN sub-bus failure | Check connectors and continuity |
| Battery drain overnight | Shorted control module | Measure parasitic draw and isolate fault |
| Water under carpets | Wiring harness corrosion | Repair harness and reseal floor drains |
Professional Diagnostic Approach
Electrical diagnosis on a Mercedes isn’t guesswork it’s a process.
Here’s the method followed in professional workshops:
- 1. Perform a Full System Scan
Use Mercedes XENTRY Diagnosis or an equivalent OEM tool to identify which control units fail to communicate. - 2. Check Power & Grounds
Confirm voltage at ECU pins and SAM connectors using a multimeter. A missing 12 V or poor ground is often the silent culprit. - 3. Inspect CAN & LIN Signals
With an oscilloscope or PiCAN3 sniffer, examine waveform symmetry and bus activity. A healthy CAN line alternates around 2.5 V; distorted signals indicate interference. - 4. Search for Water Damage or Shorts
Lift carpets, remove seat trims, and inspect fuse boxes. Water under the center console is a common reason for SAM and BMS failures. - 5. Replace or Reprogram the Faulty Module
If a control unit is defective, install a genuine part and perform SCN coding or variant coding using DTS Monaco or Vediamo. - 6. Clear Fault Codes & Verify Communication
Re-run the full diagnostic scan to confirm every module responds and that no new faults appear.
Real Mercedes Case Studies by Fault Type
CAN & LIN Network Diagnostics
– CAN Bus Troubleshooting
Learn how to identify and diagnose CAN communication faults using waveform analysis and network resistance testing.
– Mercedes U100887 LIN Bus Issue: Fix Guide
Learn how to identify and diagnose LIN communication faults using waveform analysis and network resistance testing.
– Mercedes Key Not Working Ignition
Key signal loss often relates to EIS and SAM ECU communication faults.”
– Mercedes Touchpad Not Working: Diagnose & Fix It Easily
Learn how wiring interruptions, CAN disturbances, and third-party systems cause touchpad and controller failure.
– Ambient Lighting Not Working? Full Diagnostic Guide
Step-by-step troubleshooting for Mercedes ambient light failures caused by LIN bus faults, door control issues, and faulty LED modules.
ECU & Communication Faults
– Mercedes Benz Not Starting – Body Control Module (SAM) Fault
Water intrusion under the center console caused SAM failure and communication loss; issue resolved after module replacement and coding.
– Car Turns Over But Won’t Start – Fuel Pump Control Unit Fault (W213)
No fuel delivery traced to defective fuel pump ECU; replaced and reprogrammed successfully.
– Problem Starting Car – CLA 45 (W118) ME Control Unit Fault
Faulty ME ECU voltage line identified via continuity test; replacement restored normal start sequence.
– AdBlue Reset Mercedes: Causes & Reset Procedure
AdBlue system required ECU and SCR module reset after injector repair; showcases proper diagnostic flow.
– Mercedes W206 Problems – High Voltage Battery BMS Fault
Isolation resistance fault in BMS control unit; corrected after HV battery replacement.
– Restraint System Malfunction Mercedes: Solution Steps
A complete walkthrough of diagnosing and fixing Mercedes airbag, seatbelt, and SRS electrical failures with real dealership case study.
Voltage & Power Supply System
– Auxiliary Battery Malfunction – How to Fix
Learn the step-by-step process to diagnose and repair an Auxiliary Battery Malfunction in your Mercedes, including voltage testing, proper replacement, and system reset using XENTRY.
– Mercedes Auxiliary Battery Warning
If your dashboard displays “Auxiliary Battery See Owner’s Manual,” our guide on the Mercedes Auxiliary Battery Warning explains common causes such as converter faults, voltage drops, and how to clear the warning after repair.
– 12V Battery Mercedes Warning
A weak main battery can interrupt communication between modules and trigger low-voltage alerts
– Auxiliary Battery Malfunction Mercedes
Low auxiliary voltage triggered repeated module resets; resolved by replacing the secondary battery.
– 48V Battery See Owner’s Manual
EQ Boost and hybrid models may display a “48V Battery See Owner’s Manual” message when the high-voltage converter or BMS module fails
– Battery Not Charging Mercedes? Full Diagnostic & Repair Guide
Step-by-step troubleshooting workflow for Mercedes charging faults, from alternator output checks to SAM and pre-fuse box voltage supply failures.
– Stop Vehicle Leave Engine Running: Warning Fix Guide
Complete diagnostic guide to identifying low voltage, alternator faults, and battery management issues in the Mercedes C-Class.
Access & Authorization Issues
– Mercedes Key Not Detected
Learn how to diagnose a Key Not Detected message caused by LIN or SAM network faults.”
– Central Locking Not Working: Repair Tips
Step-by-step Mercedes central locking diagnosis and fix.
– Mercedes Electrical Problems: Fix SAM, ECU & CAN Bus Faults
Diagnose deeper electrical faults with our full guide
Control Module Power Feed & Short Circuit Problems
– Problem with Power Steering – Short Circuit in Steering Rack (C350e)
Oil leak caused internal short in the steering rack’s control board, disrupting CAN signals.
– Car Will Turn But Not Start – Mercedes A-Class W177
Fuel control circuit lost power feed; fuse and wiring repair restored ECU operation.
– Transmission Shifting Problems – Mercedes E300 W212 (722.9)
TCU communication restored after correcting voltage drop on gearbox harness.
– Car Dies While Driving – Mercedes GLE W167 (OM654)
Intermittent power interruption traced to fuel rail pressure control wiring fault.
– Check Emergency Fresh Air System: Diagnosis & Fix
Covers how to diagnose and repair the Emergency Fresh Air System malfunction caused by low reservoir pressure, faulty pressure sensors, or wiring faults using STAR Diagnosis and guided testing.
– Mercedes Door Won’t Open From Outside: Easy Solution
Learn how to diagnose and repair door actuator and linkage faults in the Mercedes-Benz CLA W118, with step-by-step troubleshooting for exterior door lock failures.
– Steering Wheel Buttons Not Working: Solution Guide
Complete troubleshooting guide for Mercedes steering wheel button failures (SCM & LRE faults)
– Auto Lights Inoperative? Quick Fixes Explained
Complete diagnostic guide for Mercedes automatic light and rain sensor malfunctions (LRSM faults).
– Wiper Blades Not Working: Full Diagnostic Guide
Step-by-step troubleshooting for Mercedes wiper failures, including fuse checks, wiring tests, LAUNCH diagnostics, and wiper motor verification.
– Driver Door Speaker Not Working: Fix Guide
A complete step-by-step case study showing how faulty wiring, LIN/MOST checks, and amplifier IC testing helped diagnose and fix a silent driver door speaker on a Mercedes GL W164.
– Sunroof Won’t Open Or Close: Expert Solutions
A practical walkthrough for diagnosing track faults, electrical issues, calibration loss, and restoring full sunroof operation.
– Interior lighting in Car: Ambient Light & Fix Guide
Complete troubleshooting guide for Mercedes ambient lighting faults, LIN-bus errors, and dashboard/door strip failures.
– Power Steering Malfunction Mercedes: Causes, Diagnostics & Fix Guide
A complete troubleshooting walkthrough for electric power steering failures, including CAN Bus checks, voltage issues, and real Mercedes case study repair steps.
– Mercedes DRL Failure: Causes, Diagnosis & Repair Guide
Learn how technicians identify and replace defective LED driver modules when one daytime running light stops working.
Water Damage & Wiring Harness Issues
– Active Brake Assist Functions Limited – Diagnostic Case Study
Radar module lost communication with ESP via chassis CAN; wiring fault repaired.
– Mercedes EQB Issue – ADS Control Unit Wiring Damage
Rodent damage on ADS power supply harness fixed; control unit communication restored.
– Airmatic Mercedes Problem – GL 500 Suspension Drop
Valve block wiring fault on chassis CAN bus corrected after calibration.
– Cooling System Fault – Mercedes EQ Model
Stuck expansion valve (Y140/1) traced to LIN communication error; valve replaced and system rechecked.
Understanding the SAM, ECU & CAN Bus Relationship
- – SAM (Signal Acquisition Module): The gateway distributing power and communication to lighting, wipers, and comfort features. Think of it as the car’s smart fuse box.
- – ECU (Engine Control Unit): The brain controlling fuel injection, timing, and emissions. A voltage drop or ground fault here often triggers “Check Engine” or limp mode.
- – CAN Bus (Controller Area Network): The nervous system linking every module. A break in this network can make multiple systems appear faulty when only one line is open.
When troubleshooting, remember that a CAN fault in one area can silence unrelated modules always start by restoring network integrity before replacing parts.
Prevention & Maintenance Tips
- – Keep the cabin and trunk drain holes clean to avoid water intrusion.
- – Regularly inspect under-seat fuse boxes and connectors for corrosion.
- – Maintain battery health; a weak battery can disrupt communication networks.
- – Avoid jump-starting without surge protection.
- – After any module replacement, always perform SCN coding to synchronize configurations.
